BIOPTRON 2

PAG-880

BIOPTRON 2 FEATURES

The BIOPTRON 2 light therapy device is primarily designed for use by health professionals in medical facilities. Different stands are available (professional, y-stand, wall-mounted) to assure the best-fitting solution for every need. The easy positioning allows a comfortable treatment for the patient as well as for medical professionals. The control panel allows for an easy setting of the treatment session for up to 95 minutes, divisible into one-minute steps. The filter diameter (approx. 15 cm) allows the treatment of larger areas and hence offers a time effective therapy. The BIOPTRON 2 guarantees the highest degree of comfort for all applications and like other BIOPTRON light therapy devices is very easy to use.

FAST, EASY TO USE AND SAFE

Request a presentation

TECHNICAL DATA

Application

"BIOPTRON improves microcirculation • Reinforces the body’s defense system • Stimulates regenerative and reparative processes • Promote wound healing • Relieve pain or decrease its intensity - these basic mechanisms are responsible for the therapeutic healing effects as a complementary treatment of the following medical conditions: pain, wounds, dermatology, pediatrics, SAD"

Dimensions

85 x 94 x 26,5 cm

Medical Device Classification

IIa

Wavelength

480 - 3400 nm

Degree of polarization

>95%

Filter/glass diameter

approx. 15cm

Specific power density

av. 40 mW/cm²

Light energy per minute

av. 2.4 J/cm²

Light Intensity

min. 10.000 lux

CE labeling

CE0197

Weight without stand

4.3 kg

Weight with stand

7,4 kg

Power Supply

100-240 V~ 50/60 Hz

Power consumption

1.4-1.0 A

Rated Power consumption

90 W

Rated power of halogen

75W

Power cord

detachable (3m)

Producer

BIOPTRON AG - Sihleggstrasse 23, CH-8832 Wollerau - Switzerland

Made in

Switzerland

Composition

BIOPTRON 2 device * Floor stand * Power cord (detachable) * blind fold for newborns * Oxy Sterile Spray voucher * User manual * Warranty

Display

Yes digital

Warranty

5 years

Certifications/Declaration

EC Certificate, MDSAP, 510(k)

Accessories for Bioptron 2

BIOPTRON 2 ACCESSORIES

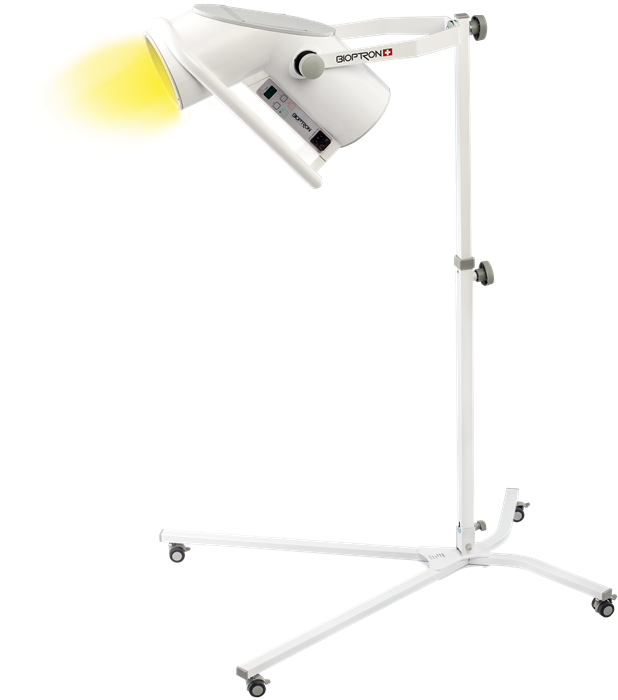

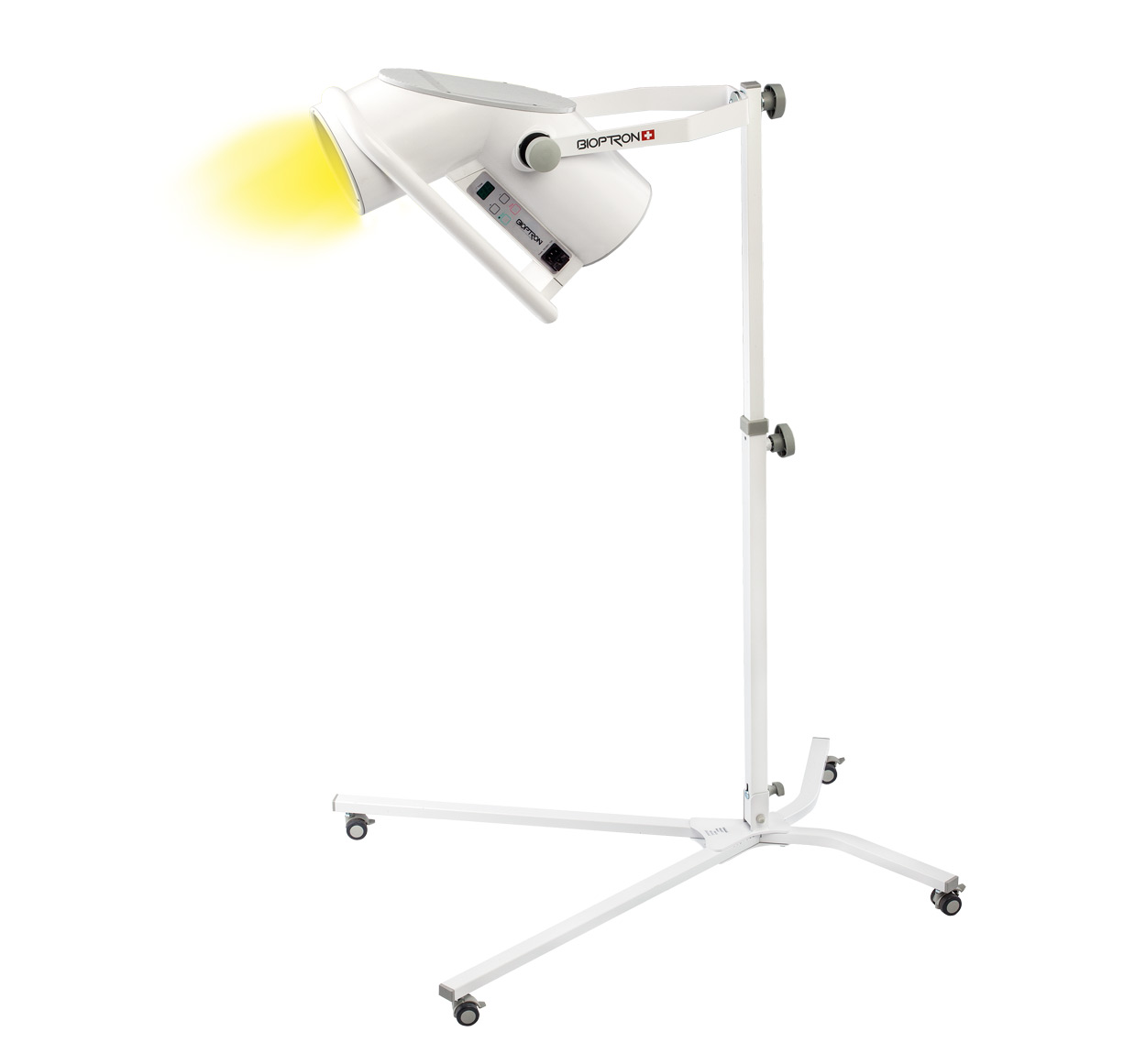

BIOPTRON 2 Domestic Stand (or Y-Stand) (code: PAG-880-SET-2)

BIOPTRON 2 comes with a floor stand that allows optimal positioning and a convenient treatment of the whole body to meet everyone’s needs.

Features

Absolutely safe
Easy to move
Highly comfortable for a relaxing treatment
Snap-in security system
Flexible as it reaches all body areas
Consumer-friendly assembly and adjustment

HOW TO USE

BIOPTRON Light Therapy is to be performed individually. The duration of each session and of the entire course of the treatment depends primarily on your health problem and on the state of the area to be treated. Depending on the medical condition to be treated, the BIOPTRON Light Therapy treatment will only take a few minutes once or twice a day. BIOPTRON should be used when you have time to relax and can enjoy the biostimulative effects of the therapy.

All you need to do is follow these simple steps:
